We will use scipy.optimize.fsolve() to solve for roots of equations. We will use np.roots(coeff) to find the roots of polynomials. Both are in the python library. Suggested reading is Numerical Methods for Engineers by Chapra and Canale.
The first example finds the depth of a channel given an equation using other flow parameters. The program is self explanatory. Import scipy.optimize, define the function, call the function and the initial guess using fsolve, and print the results. The output is shown in the comment. You can copy and paste the Python program into PyCharm Commmunity interface.
#Find root of equation with fsolve for a channel
import scipy.optimize
def fun(H):
z = 0.471405*(20*H)**(5/3)/(20+2*H)**(2/3) - 5
return z
#Intitial guess is 1
results = scipy.optimize.fsolve(fun,1)
print(results)
#Output [0.70229282]

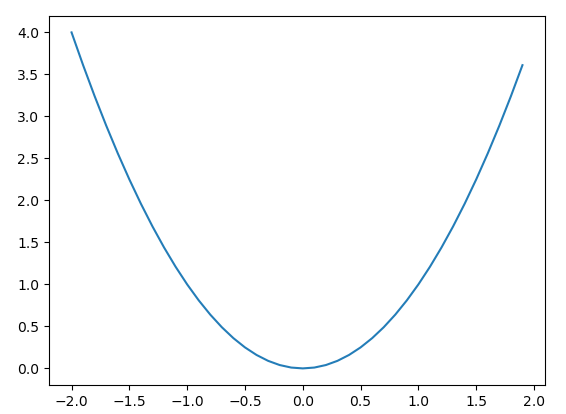

The second example is similar to the first except we use a different function, and 0.2 for the initial guess. We then plot the function. Np.arange assigns X a value between -2 and 2, at .1 intervals. Y is the function value given a value of x. We then plot x,y and show the plot.
#Find roots of equations with fsolve
import scipy.optimize
import matplotlib.pyplot as plt
import numpy as np
def fun(x):
z = x**2
return z
results = scipy.optimize.fsolve(fun,0.2)
print(results)
x = np.arange(-2,2,.1)
y = fun(x)
plt.plot(x,y)
plt.show()
#Output [1.13621076e-84] which is about zero
The third example is similar to the first two. We are computing molal volume in the gas equation.
#Find root of equation with fsolve for gas eq.
import scipy.optimize
p = 1
T = 300
a = 3.592
b = .04267
R = .0821
def fun(v):
z = (p + a/v**2)*(v - b) - R*T
return z
#Initial guess is 10
#fun in the function to be evaluated
results = scipy.optimize.fsolve(fun,10)
print(results)
#Output [24.52647078]

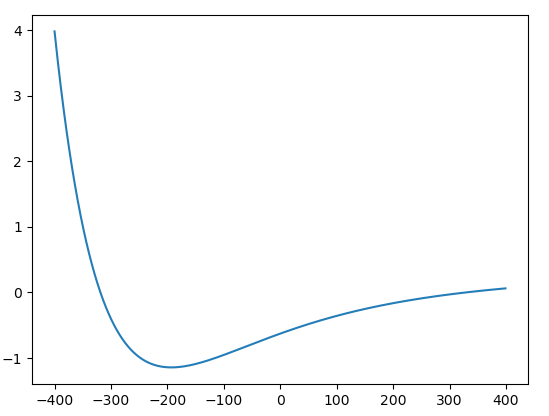

The fourth example of finding roots using fsolve is below. This example involves an equation with a circuit from electrical engineering. We provide a program and plot.
#Find root of equation with fsolve for circuit
import scipy.optimize
import math
import matplotlib.pyplot as plt
import numpy as np
def fun(R):
z = math.exp((-0.005*R))*math.cos(((2000 - 0.01*R**2)**.5)*0.05)-.01
return z
# Plot the function
R = np.arange(-400,400,1)
y = np.exp((-0.005*R))*np.cos(((2000 - 0.01*R**2)**.5)*0.05)-.01
plt.plot(R,y)
plt.show()
#Intitial guess is 100
results = scipy.optimize.fsolve(fun,100)
print(results)
#Output [328.15142909]
In this section we provide two examples of using the numpy library to solve the roots for polynomials.
The example polynomial is given below. Import numpy, enter the coefficients, and print the output.
#Find the roots of the polynomial x**3 + 3*x**2 + 2*x +1
# import numpy library
import numpy as np
# Enter the coefficients of the poly
# in the array coeff
coeff = [1, 3, 2, 1]
print(np.roots(coeff))
#Output: [-2.32471796+0.j -0.33764102+0.56227951j -0.33764102-0.56227951j]
# The output is one real number and two complex numbers.
The second example consists of a polynomial to the fourth power. First we must expand the polynomial so that all powers of x are present. We then solve as above. The polynomial is plotted from x=0 to s=2.
#Find the roots of the vib. polynomial a**4 -1.9404*a**2 +.75
#In polynomial form: a**4 + 0*a**3 -1.9404*a**2 + 0*a +.75
import matplotlib.pyplot as plt
import numpy as np
# Enter the coefficients of the poly
# in the array coeff
coeff = [1, 0, -1.9404, 0, 0.75]
print(np.roots(coeff))
#Output: [-1.1864084 -0.72995556 1.1864084 0.72995556]
#Two positive roots
a = np.arange(0,2,.1)
y = a**4 -1.9404*a**2 +.75
plt.grid()
plt.plot(a,y)
plt.show()
That is it. We have examined equations for roots.
